Description

• External Field Monitor- Featuring a 7-inch wide view angle IPS panel and 17mm ultra thin design with LED backlight, HD 1280 x 800 resolution, 450nits of brightness, a contrast ratio of 1200:1, and an aspect ratio of 16:10, this monitor is handy for video shooting.
• Supported Formats- Supports, 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF), 720p (60/59.94/50/30/29/25/24/23.98), 576i, 576p, 480i, and 480p

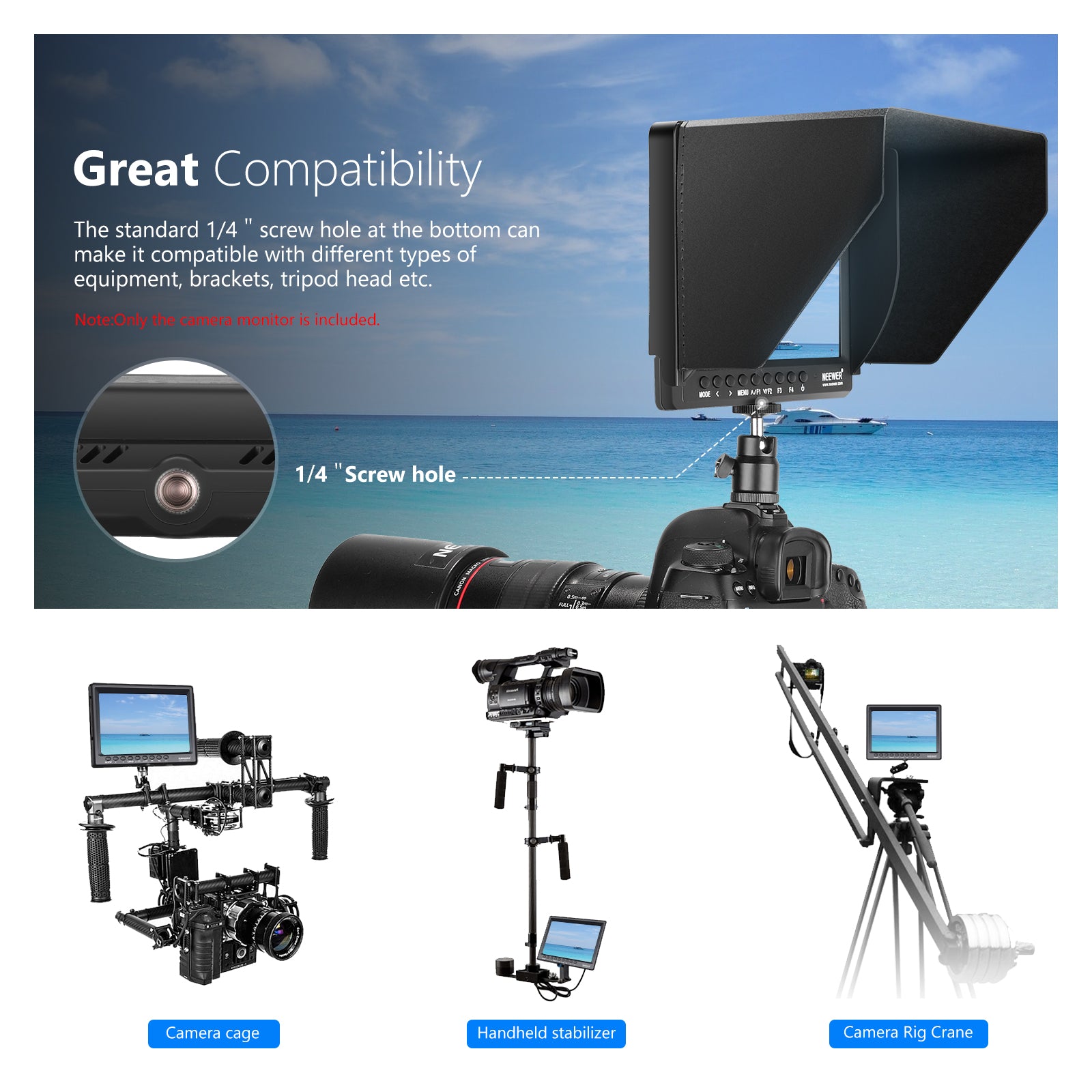

• Noise Elimination & Wide Compatibility- Press and hold the "<" button to reduce the volume to near zero, and also to eliminate noise in the video. Works with DSLR cameras, camcorders, handheld stabilizers, camera cranes, and more. The included sunshade blocks harsh sunlight and makes the display visible outdoors
• Advanced Features- Includes monitoring tools such as Peaking Focus Assist, Check Field (Red, Green, Blue, Mono), Pixel to Pixel, Center Marker, Safe Frames (80%, 86%, 90%, 93%, 96%, 2.35:1, off), Image Flip (H, V, V_H), Image Freeze, and Custom Color Temperature
• More From NEEWER- Please consider our MA006 MA002 Camera Monitor Mount with Cold Shoe & 1/4" Screw, ST25C Magic Arm and Super Clamp Set, PS099E 6800mAh V Mount Battery and NC010 D Tap to DC Power Cord for outdoor power supply, and TP74 TP75 Professional Video Tripod with Fluid Head for stable mounting. Also choose our camera cages CA011 for Sony FX3 FX30 CA031 for Canon R50 CA041 for Nikon Z8 CA014 for Fujifilm X-T5 to enhance your filmmaking and video recording

Specifications:

• Model: F100
• Panel Type: IPS LCD
• Resolution: 1280x800
• Backlight: LED
• Dot Pitch: 0.07875(W) x 0.07875(H) mm
• Aspect Ratio: 16 : 10
• Brightness : 450 cd/m2
• Contrast: 1200 : 1
• Viewing Angle: 80°/80°(L/R)80°/80°(U/D)

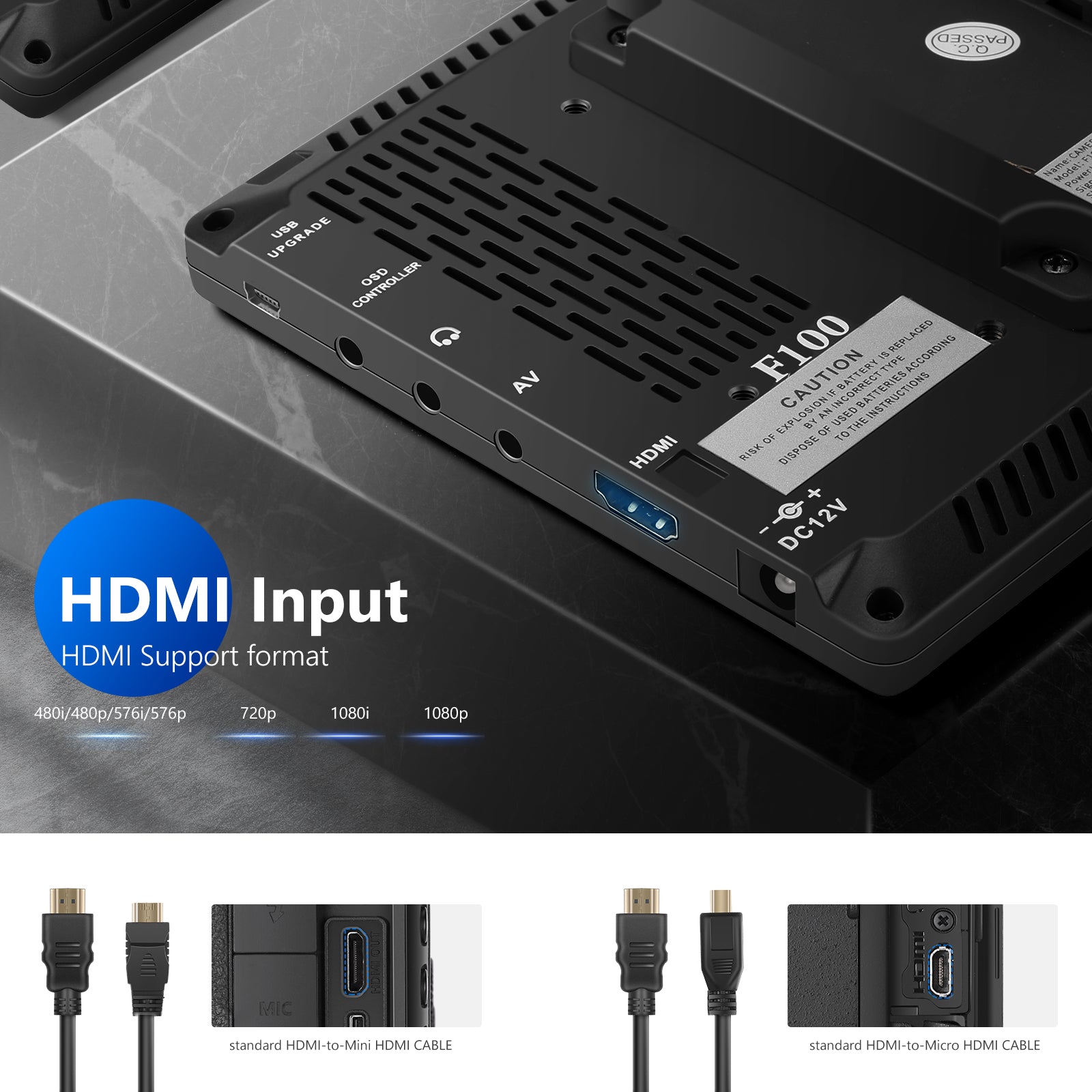

• Inputs: HDMI / AV
• Video Color System: PAL-4.43 / NTSC-3.58
• HDMI Support Mode:
• 480i / 480p / 576i / 576p
• 720p (60/59.94/50/30/29/25/24/23.98)
• 1080i (60/59.94/50)
• 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
• Input Voltage: DC: 7~20V
• Power Consumption: ≤ 8W
• Working Temperature: -2055°C
• Storage Temperature: -3065°C

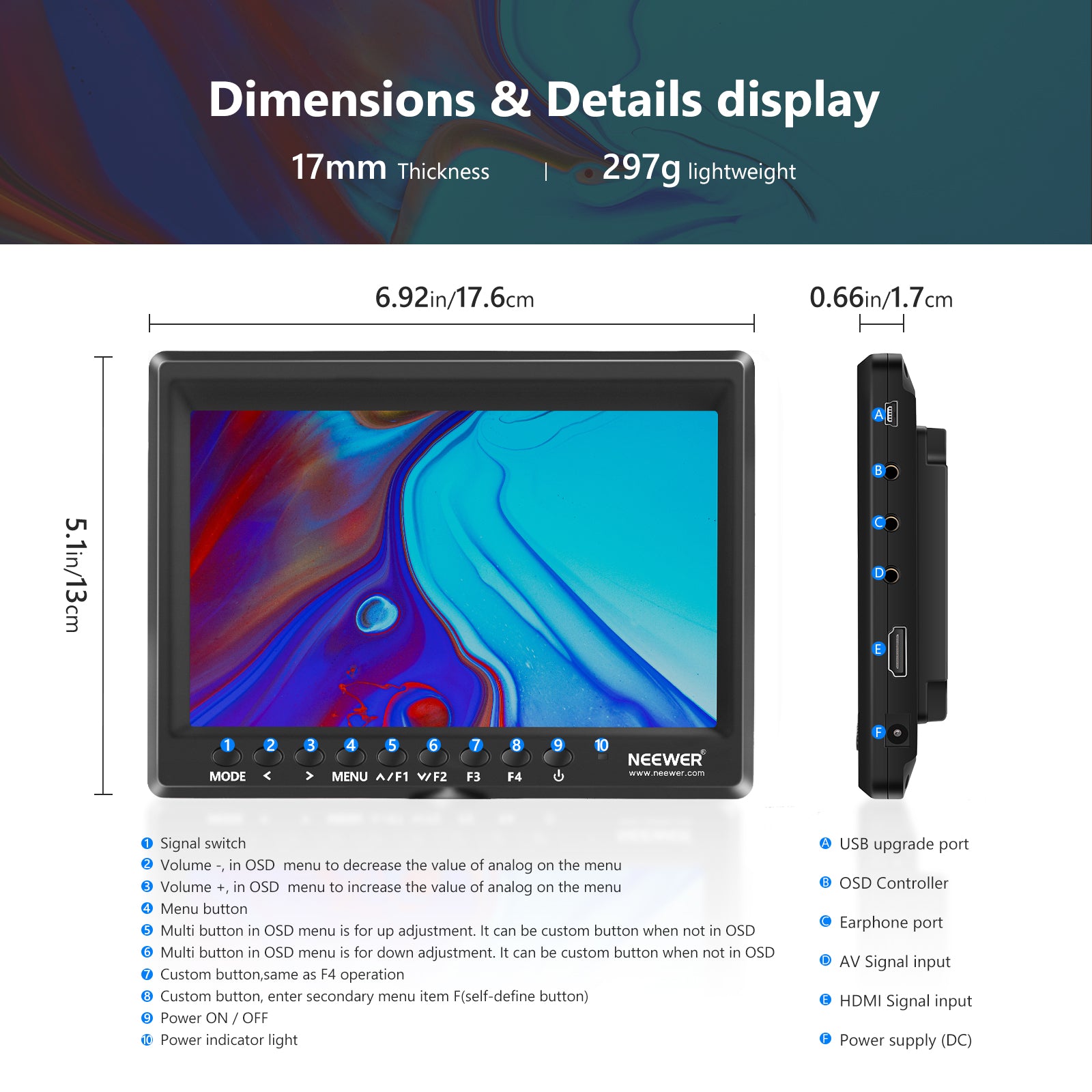

• Unit Size: 176L x 130W x 17D (mm)
• Unit Weight: 270g/370g (W/ Sunshade)

Package Contents

• 1 × F100 Monitor
• 1 × Sunshade
• 1 × Mini HDMI Cable
• 1 × Micro HDMI Cable
• 1 × AV Cable

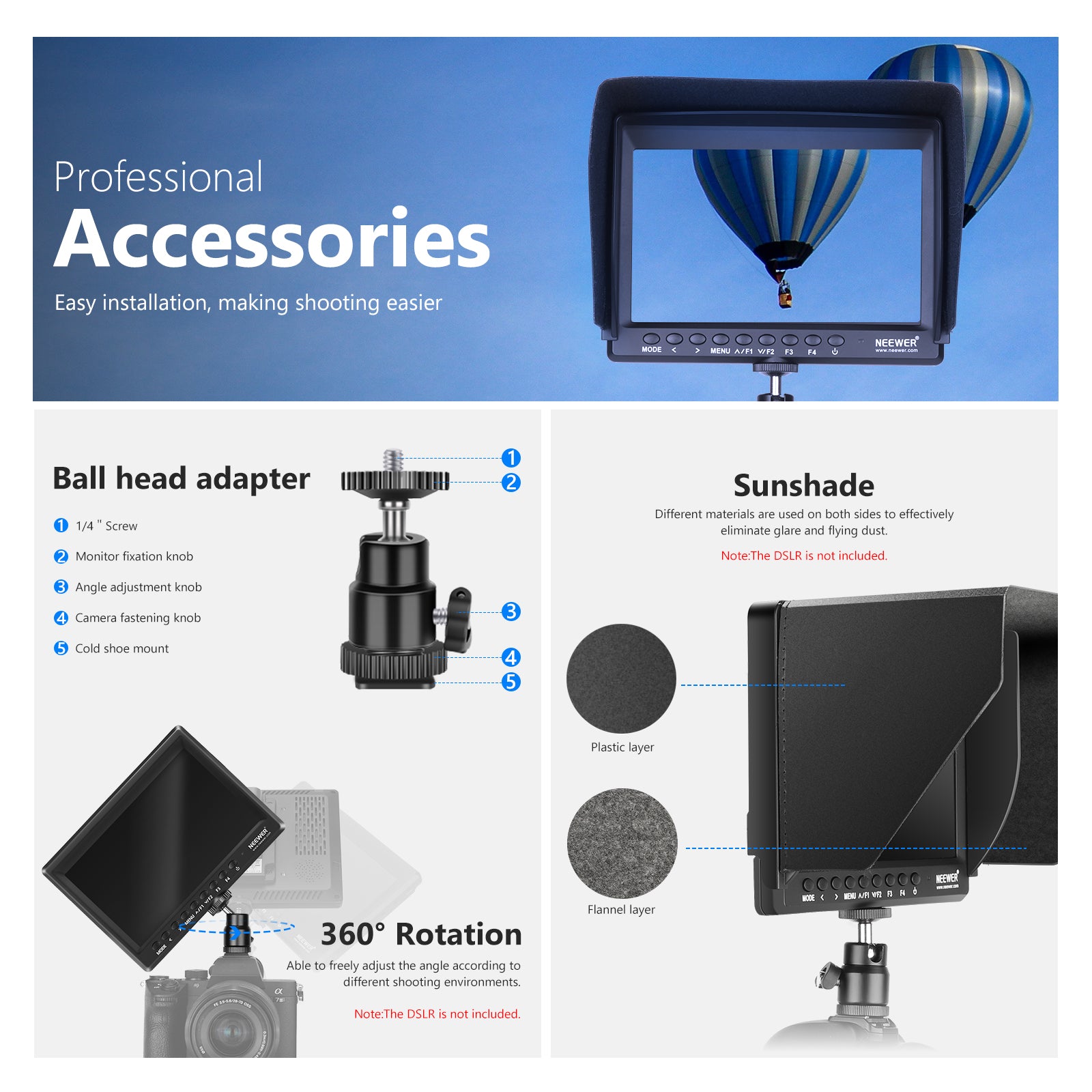

• 1 × Mini Ball Head
• 1 × User Manual

Note: NP-F battery and 12V adapter NOT included.
