Description

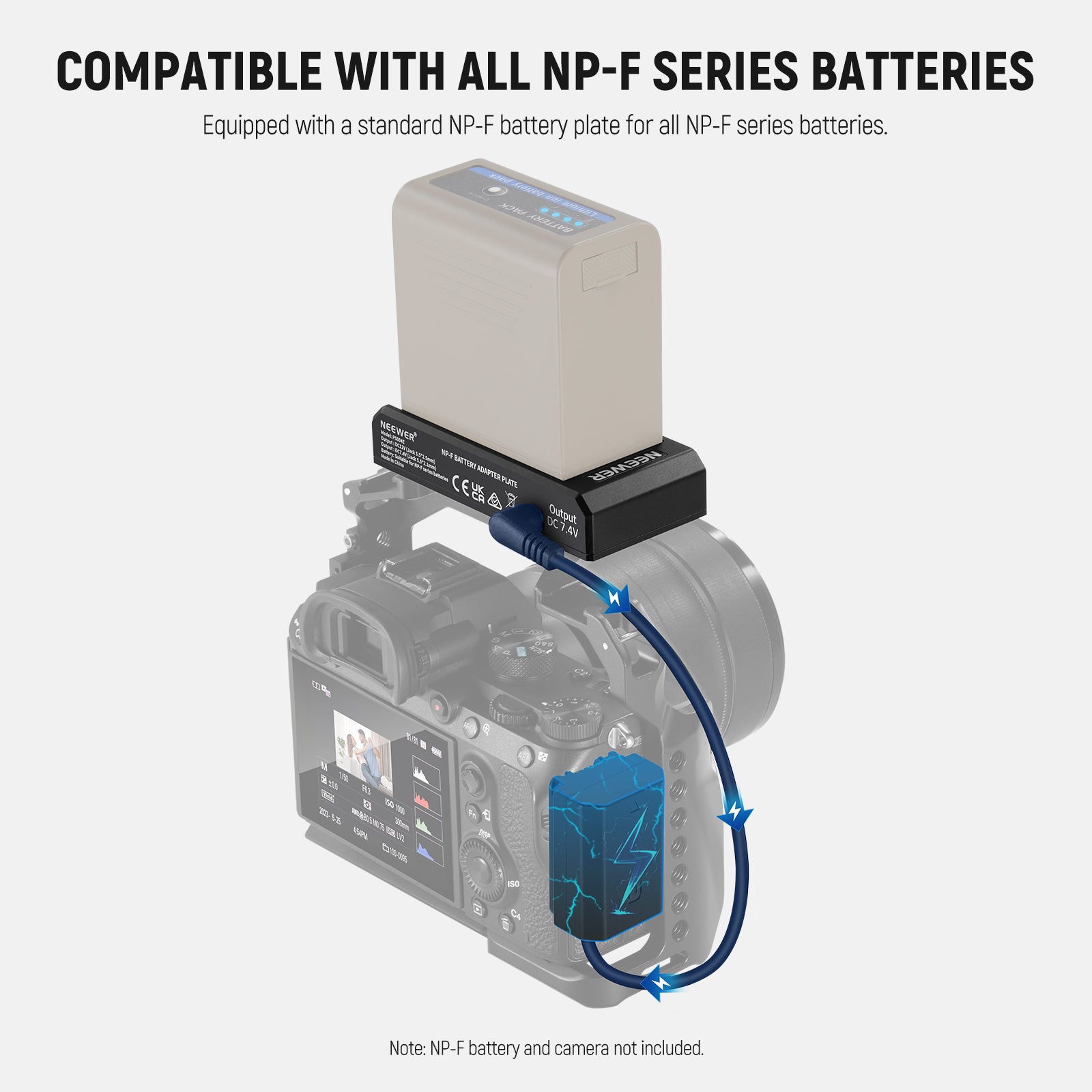

• Wide Compatibility- NEEWER PS004E Battery Adapter Plate suits all NP-F series batteries, including NP-F970, NP-F750, and NP-F550. While the NP-FZ100 Dummy Battery is compatible with Sony FX30 FX3 ZV-E1 a1 a9 a9 II a7S III a7R V a7R IV a7R III a7C a7 IV a7 III and a6600 cameras

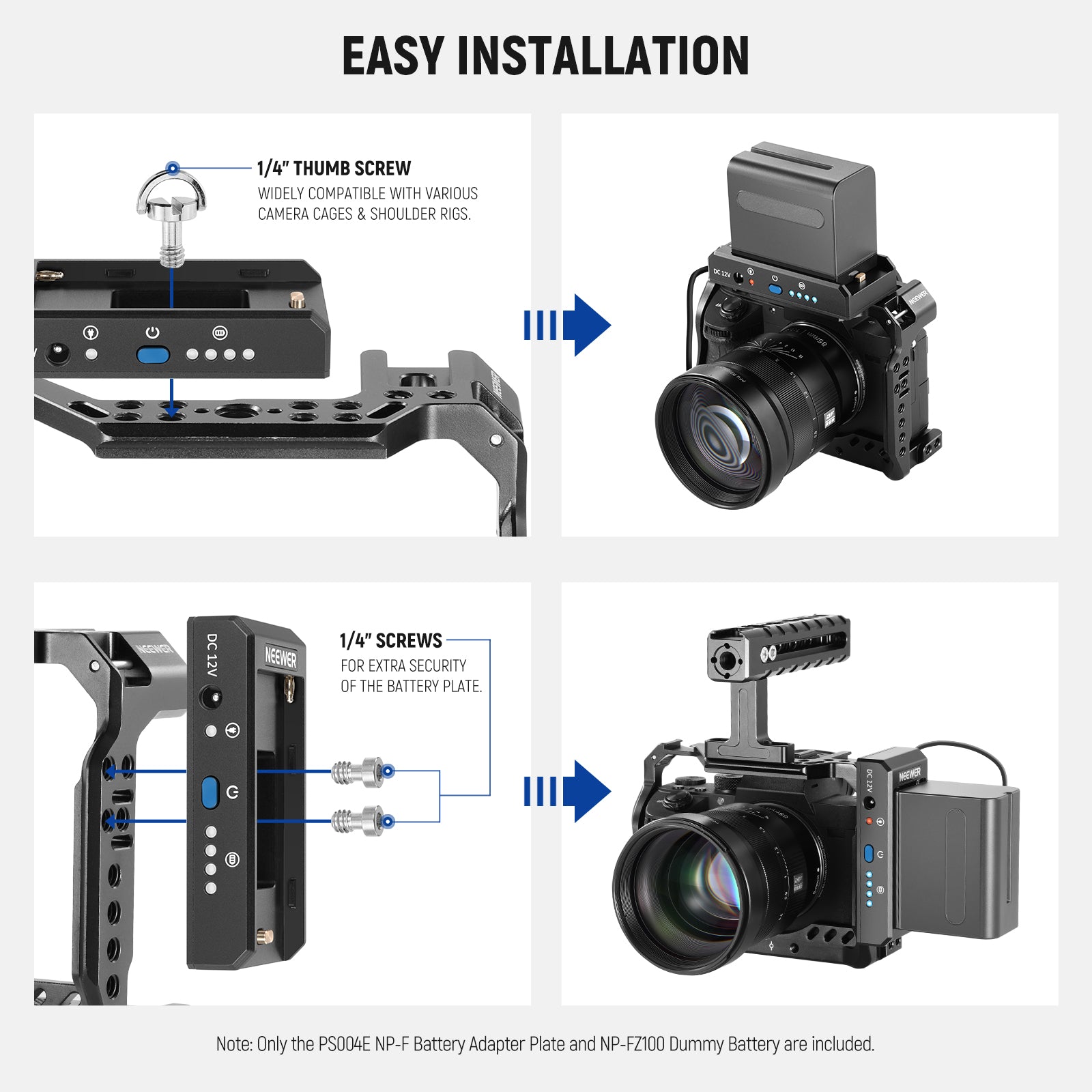

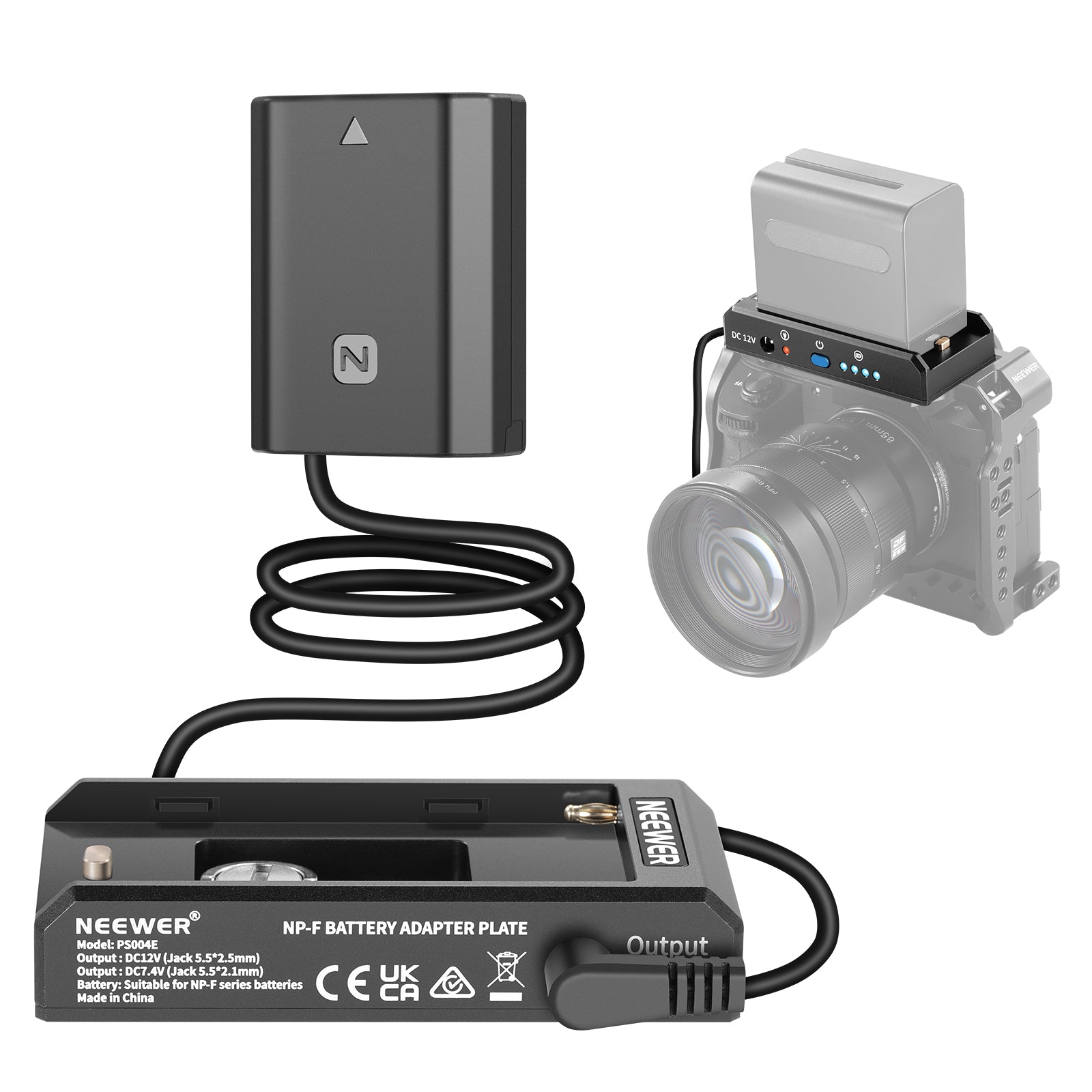

• Amplify Battery Power- PS004E Battery Adapter Plate can mount a high capacity NP-F battery on a camera cage via the 1/4” screw and provide sufficient power to your camera for outdoor shooting. NP-FZ100 dummy battery with a 5.5x2.1mm DC cable can connect to PS004E via the 7.4V output port

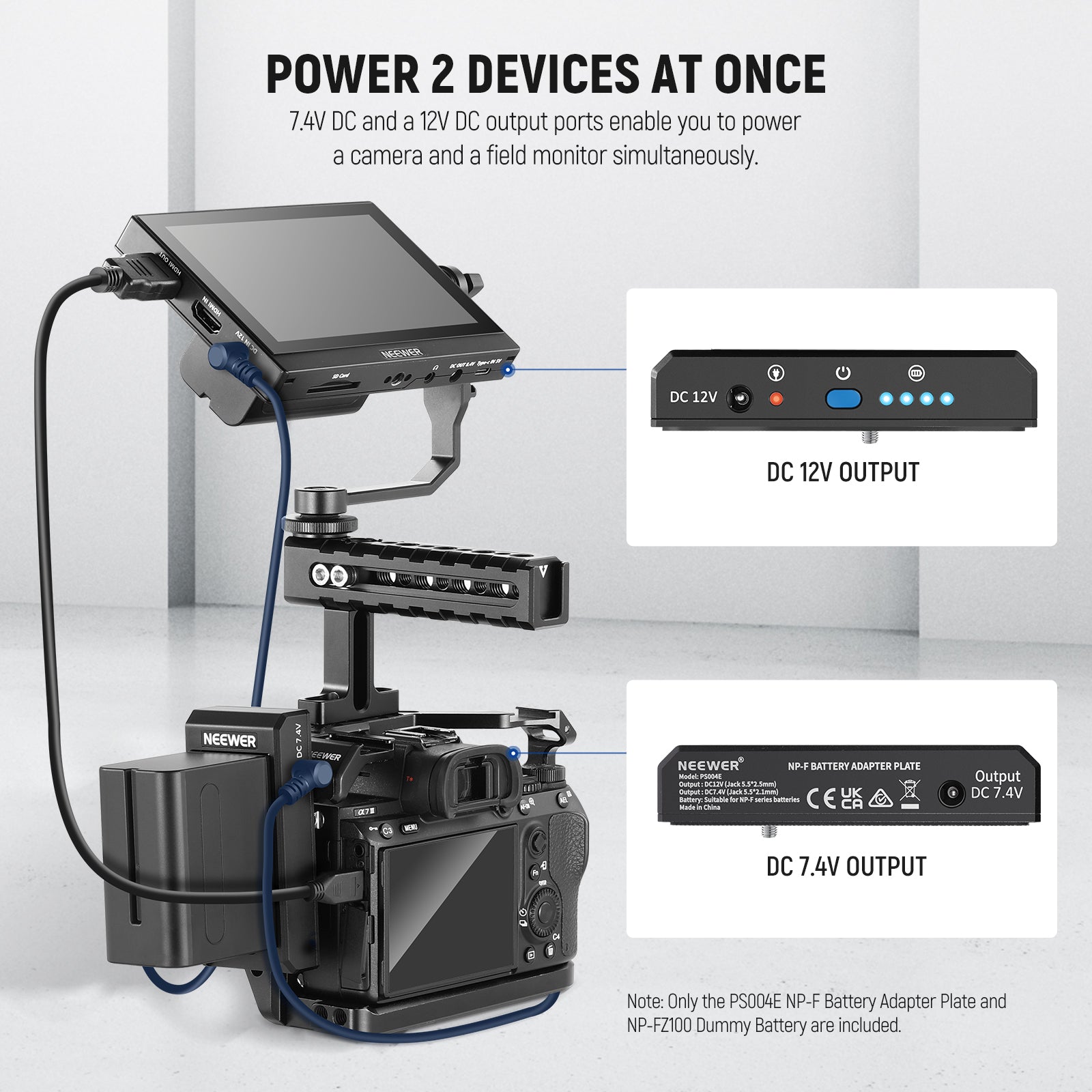

• Dual DC Male Outputs- 7.4V male DC output port (5.5x2.1mm) and 12V male DC output port (5.5x2.5mm) can simultaneously distribute battery to a digital camera and a field monitor. Note: 12V DC cables (5.5x2.5mm) are sold separately

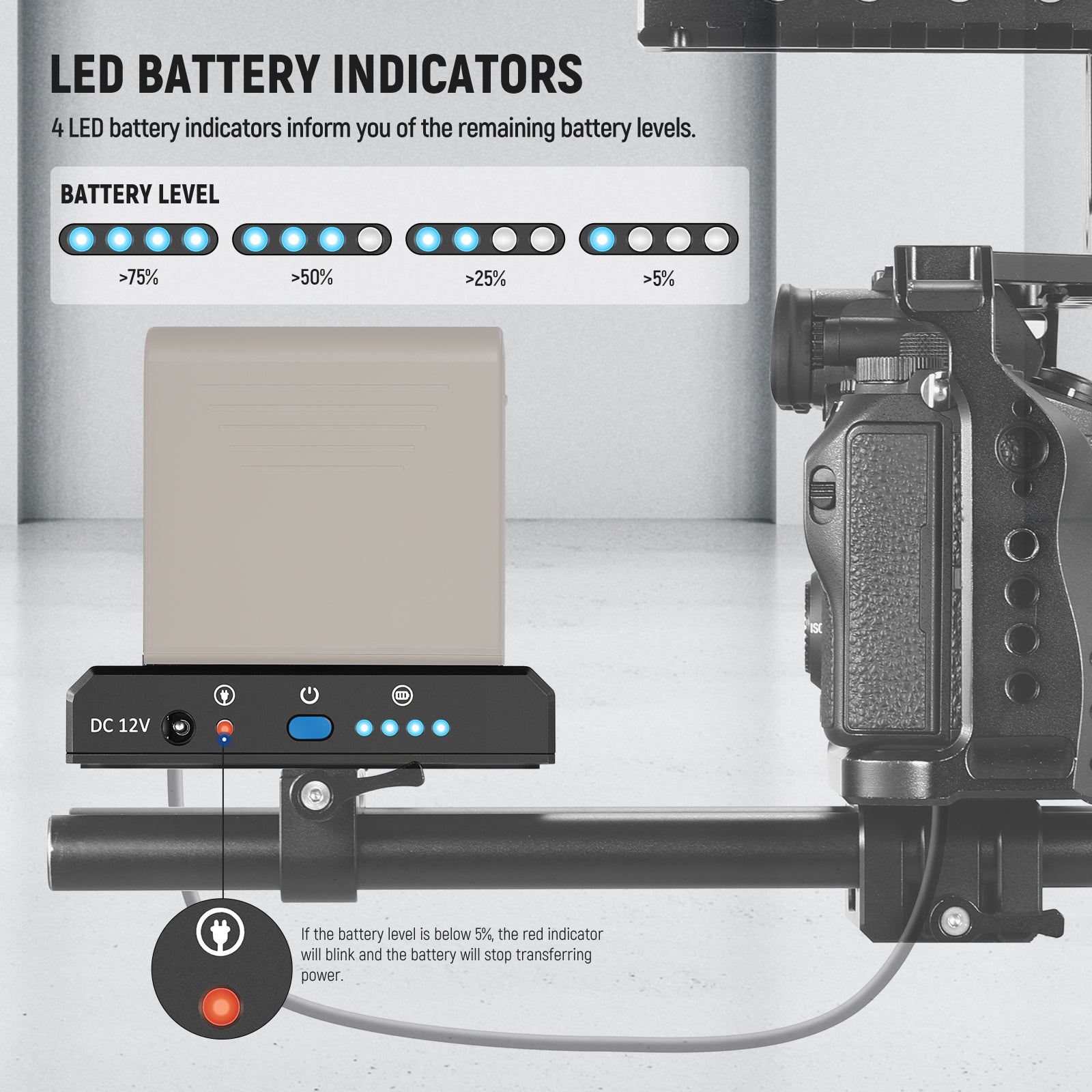

• LED Battery Indicators- 4 LED power indicators inform you of the remaining battery level at >75%, >50%, >25%, and >5%

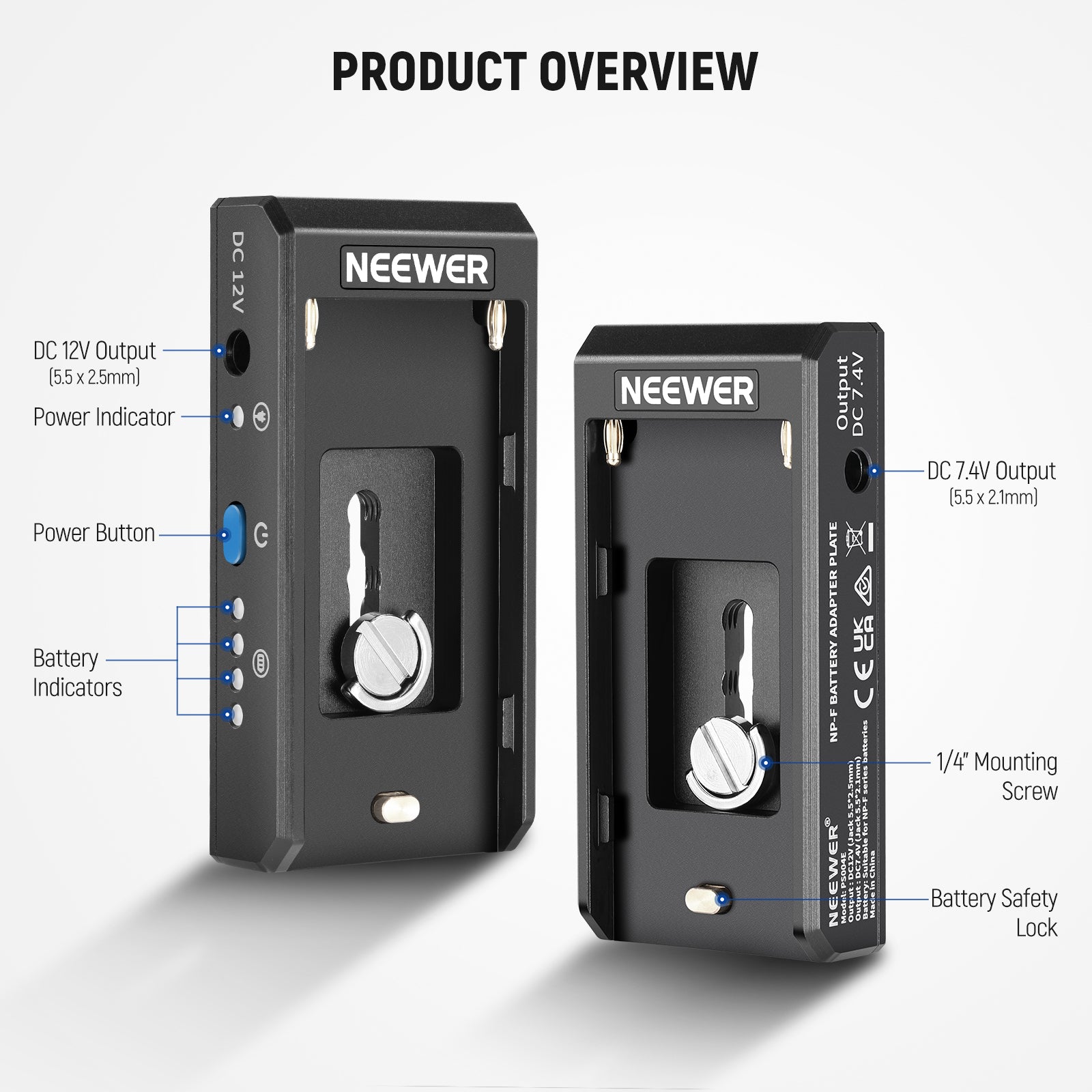

Battery Plate Adapter

• Model: PS004E
• Compatibility: NP-F series batteries
• DC Output: 12V (5.5 x 2.5mm), 7.4V (5.5 x 2.1mm)
• Output Current: 2A
• Dimensions: 3.7” x 1.8” x 0.8” / 95 x 46 x 20mm
• Weight: 3.3oz / 93g

Dummy Battery

• Model: DR-FZ100
• DC Connector: 7.4V (5.5 x 2.1mm)

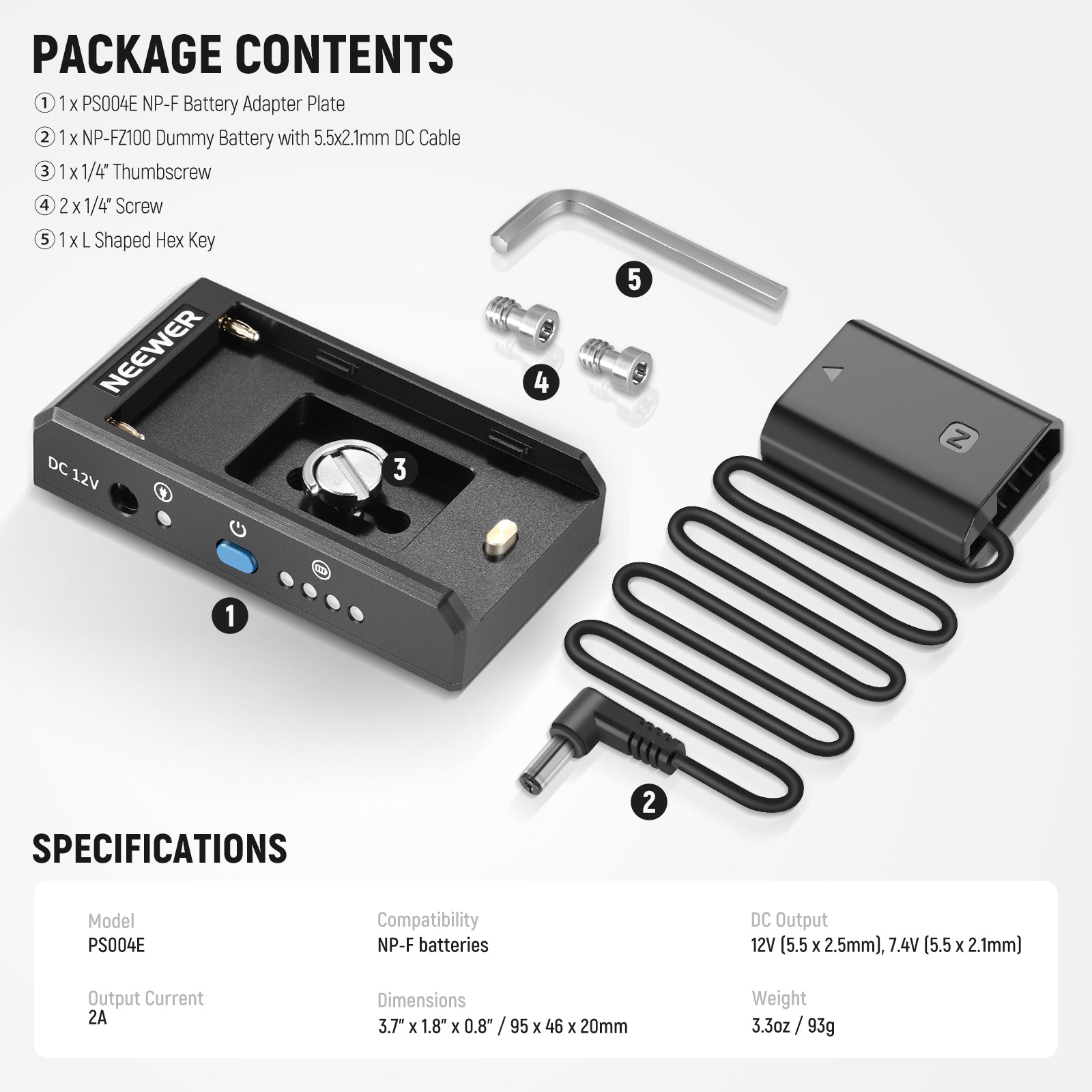

Package Contents

• 1 x PS004E NP-F Battery Adapter Plate
• 1 x NP-FZ100 Dummy Battery with 5.5x2.1mm DC Cable
• 1 x User Manual

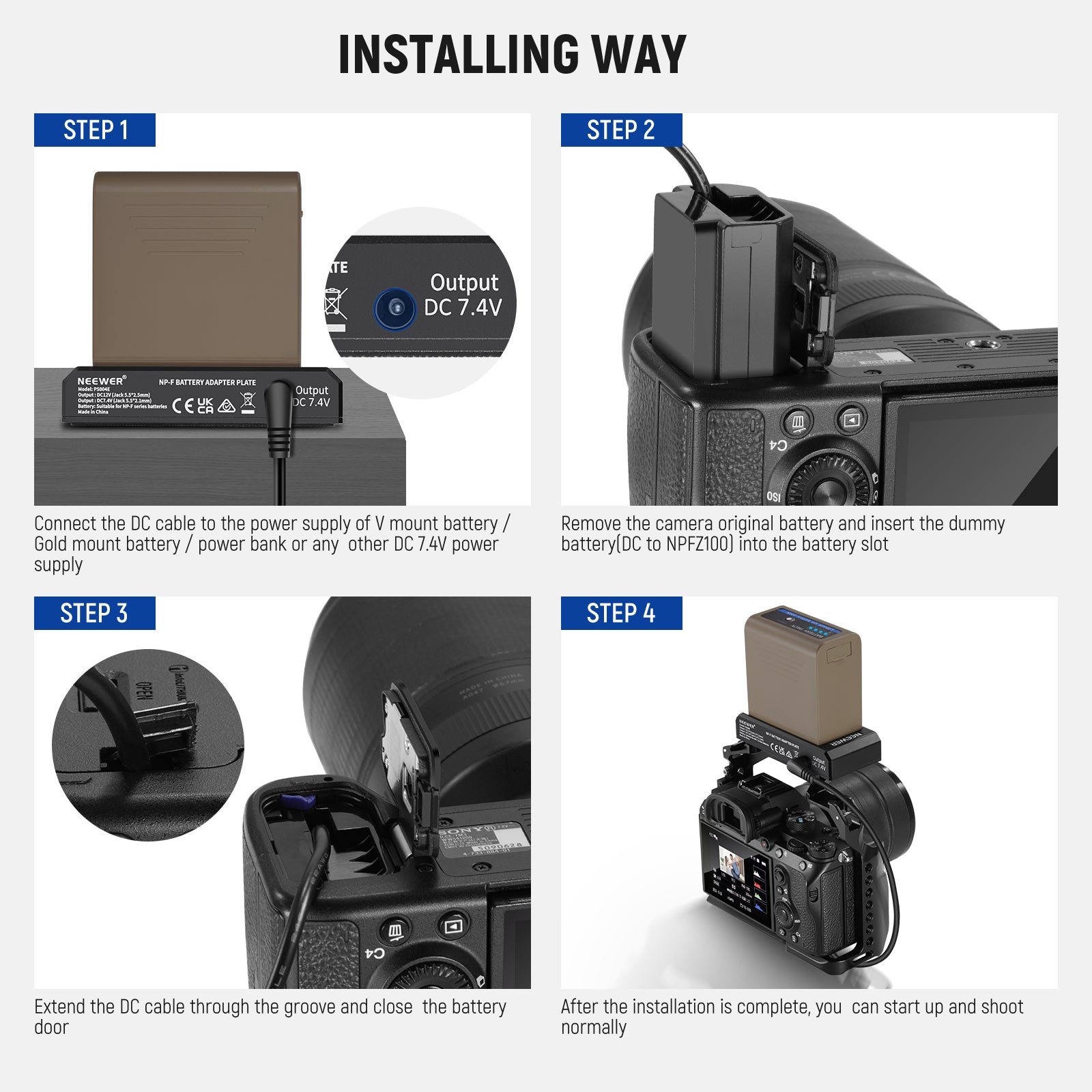

NOTE: (1) NP-F batteries are not included. (2) Please insert NP-FZ100 Dummy Battery into the 7.4V output port. (3) The NP-FZ100 Dummy battery is not a real battery and cannot power your camera directlyC
