Description

CA020

• Formfitting Design For G9 II / S5 II / S5 IIX- Seamlessly compatible with Panasonic LUMIX G9 II S5 II and S5 IIX, this camera cage is specially designed to protect your camera and attach additional accessories. Made from durable CNC anodized aluminum alloy, it provides a secure fit with full access to the battery compartment, buttons, ports, and functions even when mounted. The non slip rubber pad increases stability and prevents scratches
• Triple Anti Twist Locks- Featuring a triple locking system, your camera will be securely fastened using the bottom 1/4" locating screw and two side lock adapters. An included dual head wrench is magnetically stored under the cage to tighten the screws without extra tools effortlessly
• Gimbal & Tripod Quick Switch- Switching between a gimbal and tripod is a breeze with the standard Arca type QR base, allowing quick mounting on tripods, monopods, handgrips, and sliders with identical mounting systems. The bottom 5 x 1/4" and 3 x 3/8" thread holes are fully compatibility with DJI RS 2/RSC 2/RS 3/RS 3 Pro stabilizers for smooth, cinematic video recording
• Diverse Mounting Options- Multiple 1/4" threads and 3/8" ARRI locating holes, two integrated cold shoe mounts and a built in side NATO rail for the microphone (CM14 PRO), field monitor (F100), LED light (PL81), mini follow focus (PG001), the top handle (CA007), magic arm, and more. An extra hand strap slot for your convenience

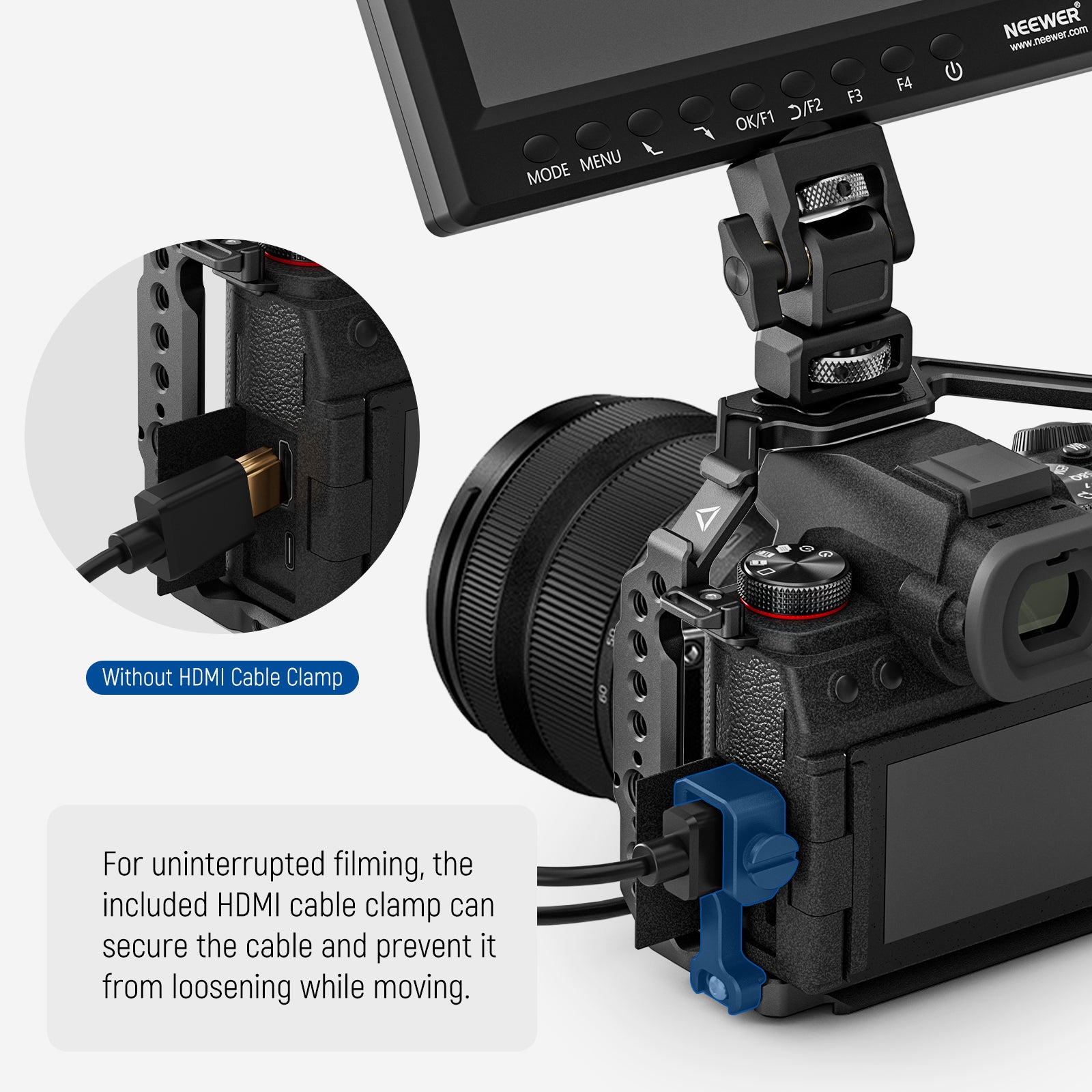

• HDMI Cable Clamp Included- The adjustable HDMI cable clamp accommodates cables of varying lengths and widths, and prevents any loosening or falling out during shooting. Its rubber pads protect the cables from scratches

CA056

• Compatible with Panasonic LUMIX S5 II/S5 II X G9 II- Made for LUMIX S5 II/S5 II X, this black anodized aluminum alloy half camera cage is lightweight yet highly robust. Precise CNC machining ensures full access to the buttons, battery compartment, and LCD screen
• Secure Installation by Two Points- The camera is fixed by two points, a 1/4" mounting screw and an anti twist side pin to avoid deflection and vibration. A nonslip rubber pad protects against scratches, and a double headed screwdriver attached under the cage helps you tighten all the screws with ease
• Arca Type Quick Equipment Switching- The Arca type baseplate is also compatible with DJI RS 2 RSC 2 RS 3 RS 3 Pro gimbals. It can slide into the gimbal’s quick release plate from left or right and let you seamlessly transfer the camera from a tripod to a handheld stabilizer
• Multiple Accessory Mounting Points- Different mounting points connect accessories or mount the camera on a stand vertically and horizontally. Several 1/4" threads for UA012 ST15 ST25C Magic Arm, a 3/8" thread with ARRI locating holes for UA010 Monitor Mount, a cold shoe for CM14 PRO Microphone and PL81 LED light, and built in NATO rails on the top and the side for PG005 CA008 CA018 Top Handle, MA005 Monitor Mount, UA011 Magic Arm, and more
• Detachable HDMI Cable Clamp- A detachable cable clamp can fix the HDMI cable for stable data transfer. The clamp is adjustable to fit cable connectors of various thicknesses and padded with soft rubber to protect the connector from damage

Specifications

• Model: CA020
• Weight: 6.35oz/180g
• Dimensions: 6.1" x 4.5" x 2.9"/155.2 x 115.3 x 73.5mm
• Materials: Aluminum Alloy

• Model: CA056
• Item Type: Camera Half Cage
• Compatibility: For LUMIX S5 II/S5 II X DJI
• Main Features: Arca Baseplate
• Main Material: Aluminum alloy
• Dimensions: 4.7"x4.5"x1.5"/120x115x38mm
• Weight: 4oz/114g

Package Contents

CA020

• 1 x S5 II/S5 IIX Camera Cage
• 1 x Dual Head Wrench
• 1 x HDMI Cable Clamp

CA056

• 1 x Half Camera Cage for LUMIX S5 II/S5 II X
