Description

• Lightweight Fluid Drag Pan Head- This ultra-lightweight, medium-sized fluid head is made of aluminum alloy and features a hollow, elaborate design, weighing only 1.5lb/0.69kg, making it easy to carry and suitable for outdoor creation. With a maximum load capacity of 13.2lbs/6 kg, it can withstand heavy camcorders and video DSLR cameras and uncertain weather

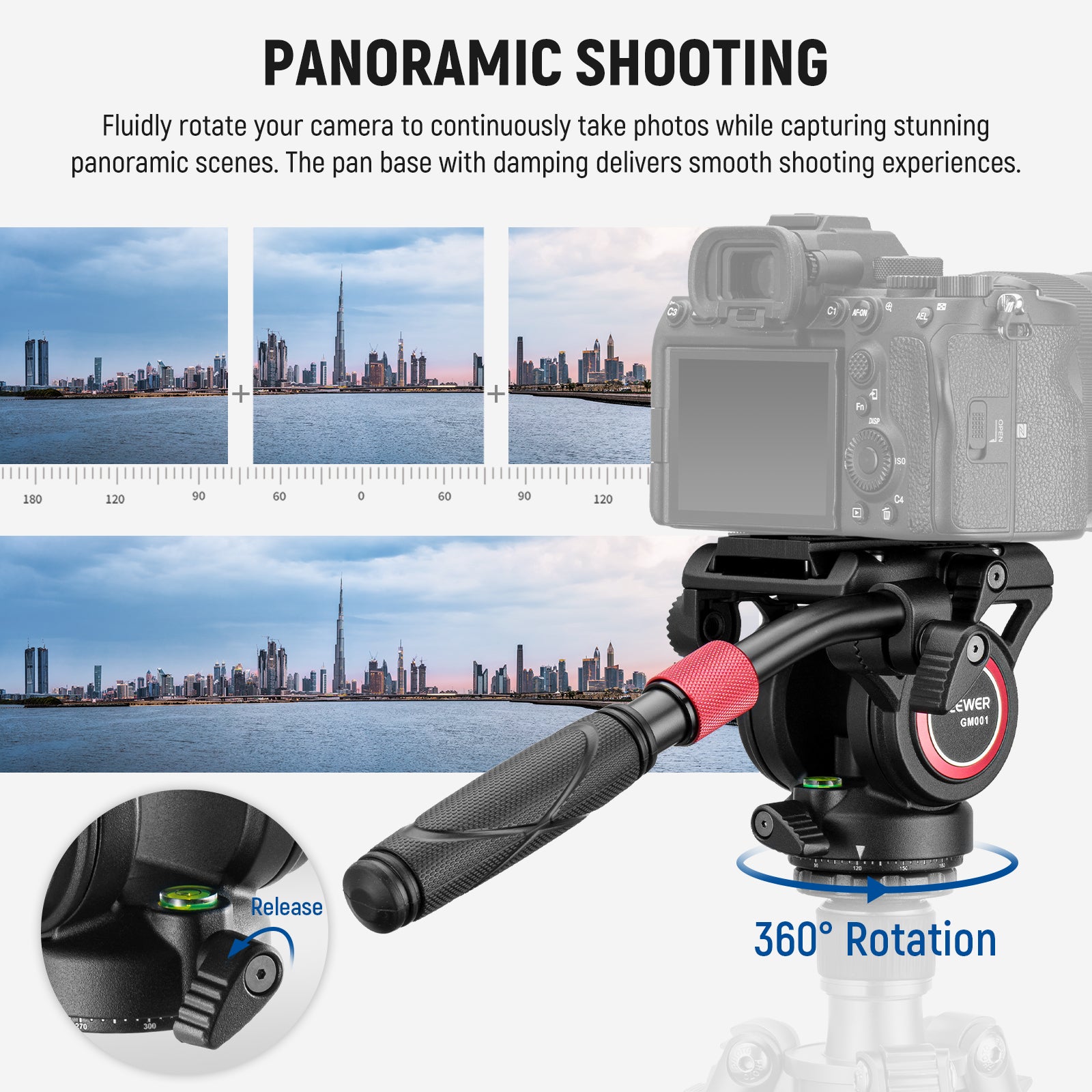

• Smooth Panoramic Movement- On the pan base with 360° scale marking, you can take spectacular panoramic images with fluidity and precision. Two Rosette mounts allow you to install the drag handle on both sides and pan the fluid head with either hand. Additionally, a handy bubble level helps you keep the level straight all the time
• Convenient Quick-Release System- The quick-release system enables quick camera mounting and is compatible with 501PL/504PL plates. A safety pin holds the plate and your valuable camera securely. Simply press the side release button and slide the plate out of the clamp
• Easy & Safe Angle Adjustment- With -70°/+90° counterbalanced tilt adjustment, this tripod head lets you capture the scenery at any angle, whether it’s low angle, overhead, vertical, or horizontal. Once you find the perfect position, tighten the locking knob to secure the tripod head in place

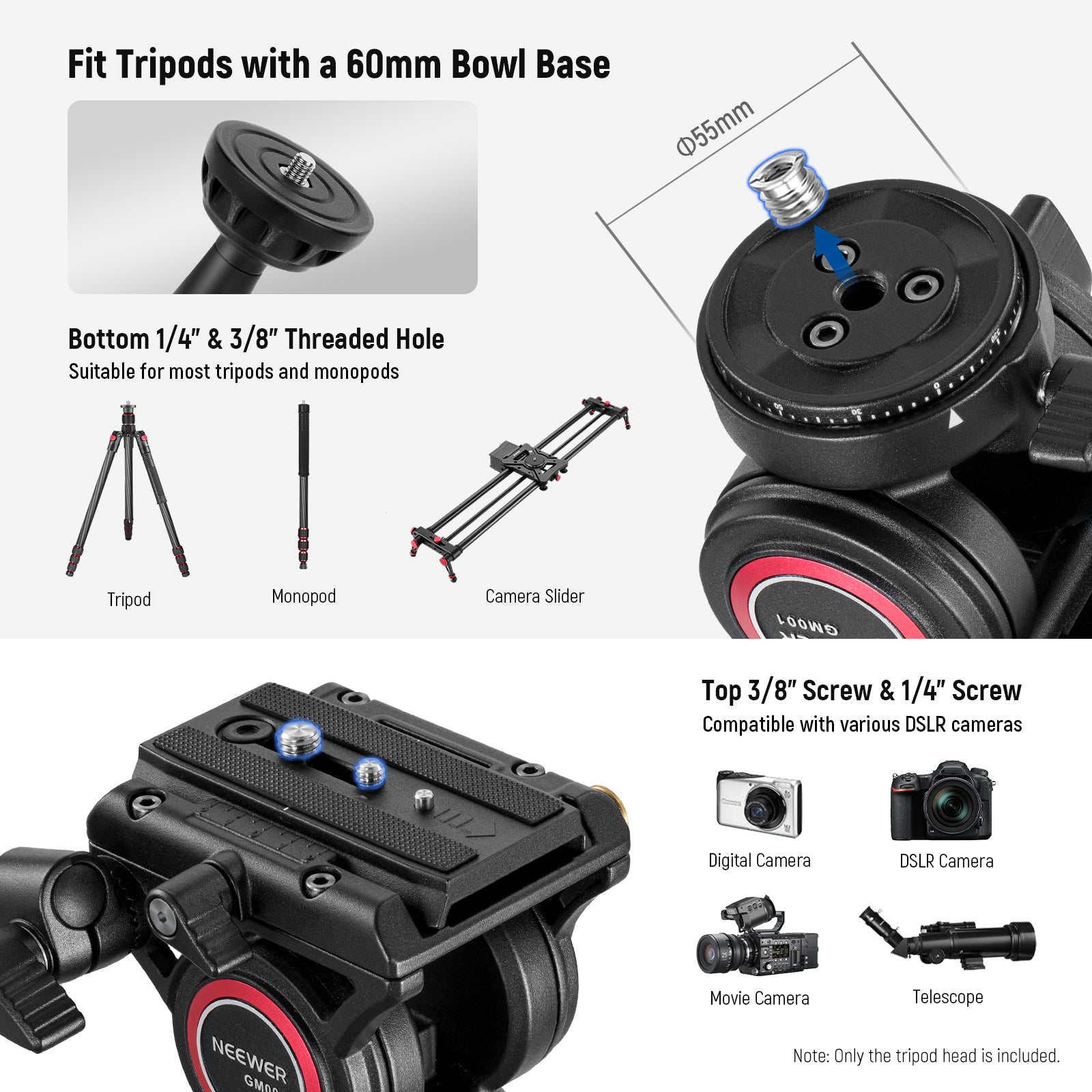

• Universal Mounting Threads- The 1/4" and 3/8" top mounting screws are available for a variety of camcorders, DSLR cameras, mirrorless cameras, cinema cameras, and telescopes. The 3/8" thread and a 3/8" to 1/4" thread adapter on the bottom can be attached to a tripod with a 60mm bowl base, monopod and camera slider. A hex key stored under the head tightens screws for secure camera mounting

Specifications

• Model: GM001
• Tilt Angle: -70°/+90°
• Rotation: 360°
• Mounting Screw: 1/4”, 3/8”
• Tripod Socket: 3/8”
• Load Capacity: 13.2lb / 6kg
• Weight: 1.5lb / 0.69kg

Package Contents

• 1 x GM001 Fluid Drag Pan Head
• 1 x Telescopic Handle (2 Sections)
